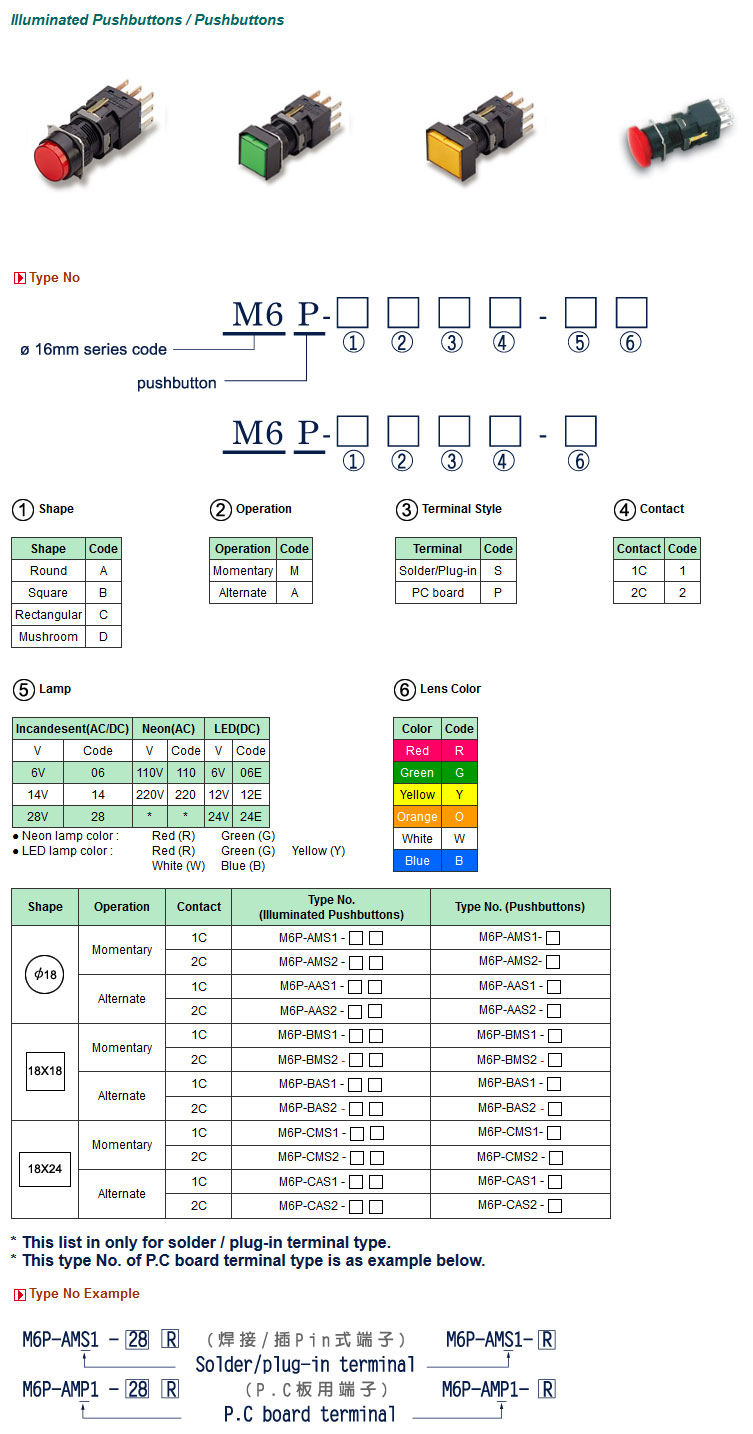

M6 switches

SPECIFICATIONS :

Operating Temperature -25 ° C ~ +55° C  (Without freezing)
Storage Temperature -30 ° C ~ +80° C
Operating Humidity 45 ~ 85%RH
Contact resistance 50m Ω maximum(initial value)
Insulation resistance 100M Ω minimum(500V DC megger)
Dielectric strength Between live part and ground : 2500VAC : 1 minute Between terminals of different poles : 2500VAC : 1 minute Between terminals of the same poles : 1000VAC : 1 minute
Vibration Resistance Operating extremes : 5 ~ 55Hz , Amplitude 1.0mmp-p Damage limits : 1000m/s2 (Approx:100G) Operating extremes : 1000m/s2 (Approx:10G)
Mechanical Life(min) Momentary : 2,000,000 Alternate : 250,000 Selector switch : 250,000
Electrical Life(min) (0.5A, 110VAC)MAX Momentary : 100,000(1800 operations/hour) Alternate : 100,000(1200 operations/hour) Selector switch : 100,000
Protection Degree IP65(IEC Pud 529)

DESCIPTION

  • Apparent shape  Round (18mm) Square (18X18mm) Rectangular Square (18X24mm).
  • Install and remove the contact block easily
  • Gold-clad cross bar contact.
  • Solder/plug-in terminal (#110) and P.C board terminal type.
  • Light touch structure.
  • Use of High Performance Engineering Plastics.
  • protective grade : IP65 (IEC Pud 529)

ELECTRICAL RATINGS

Connect
Rated voltage 250 V AC/DC
Rated current 5A
Operating Voltage 30V 125V 250V
Operating current (Resistive) AC * 3A 2A
DC 2A 0.4A *
*minimum applicable load (reference value) : 5V 1mA AC/DC

Lamp

Lamp type Rated voltage Rated current Illumination color
Incandescent lamp (AC/DC) 6V 200mA *
14V 80mA *
28V 40mA *
LED lamp(DC) 6V 25mA RED(R) White(W)
12V 25mA Green(G) White(W)
Blue(B)
24V 25mA Yellow(Y) Blue(B)
Neon lamp(AC) 110V 1.2mA RED(R)
220V 1.2mA Green(G)
