MN ENCLOSED limit switches
MN Series Enclosed Limit Switch geheel gesloten IP65 behuizing van IP67 uitvoering. Grote gamma aan RVS actuator, 10A 230 VAC schakelvermogen
MN Series enclosed Limit Switch. Completely sealed construction IP65 and IP67. wide choice of heads and actuators. NO / NC with 10A maximum 230 VAC. momenary contacts
Features :
- Side , mount switches.
- Momentary contacts
- Wide choice of heads and actuators.
- Sealed actuators.
- Completely sealed structure.
- Plastic sealed construction.
- Temperature range : +5 ° F to +175 ° F (-15 ° C to +80 ° C) .
RATING :
| 10A | 250V AC |
| 0.5A | 125V DC |
CIRCUITRY :
CHARACTERISTICS :
| Operating speed | 0.1mm to 50m/sec (at pin plunger) |
| Operating frequency | 120 operations/min. |
| Contact resistance | 25m Ω max.(initial) |
| Insulation resistance | 100M Ω min (at 500 VDC) |
| Dielectric strength | 1,000VAC. 50/60 Hz for 1 minute between non-continuous terminals 2,000VAC. 50/60 Hz for 1 minute between current-carrying and non-current carrying parts and between each terminal and ground. |
| Vibration | Malfunction durability : 10 to 55 Hz 1.5mm double amplitude. |
| Shock | Mechanical durability : 1,000m/sec2 (approx.100G’s) Malfunction durability : 300m/sec2 (approx.30G’s) |
| Ambient operating temperature | Operating : -10 ° C to +80 ° C |
| Humidity | 95% RH max (at +20 ° C to 35 ° C) |
| Service life | Mechanically : 10,000,000 operations min (at rated OT value) Electrically : 500,000 operations min , (2A,110VAC)MAX. |
| Degree of protection | IEC : IP65 |
ORDER GUIDE :

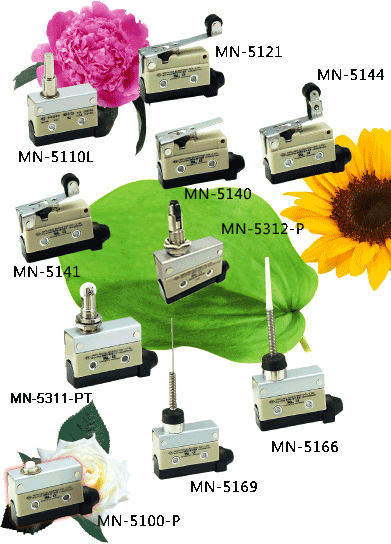

| Series Name | MN Limit Switches |
| Actuator | 5100 : Short Plunger |
| 5110 : Long Plunger | |
| 5110L : Extra Long Plunger | |
| 5110XL : Specified Long Plunger | |
| 5120 : Long Hinge Lever | |
| 5121 : Long Roller Lever | |
| 5124 : Unidirectional Long Roller Lever | |
| 5140 : Short Hinge Lever | |
| 5141 : Short Roller Lever | |
| 5144 : Unidirectional Short Roller Lever | |
| 5161 : Spring Lever Metal | |
| 5166 : Spring Lever Plastic | |
| 5169 : Wire Spring Lever | |
| 5310 : Screw Fixed Plunger | |

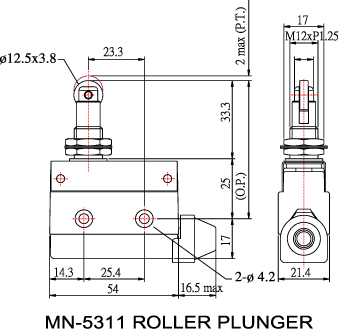

| 5311 : Screw Fixed Roller Plunger | |
| 5312 : Cross Roller Plunger | |
| Materials | P : Plastic Roller |
| PT : Taflon Plunger or Roller | |
| PT : Metal Plunger or Roller |
