MEA plastic limit switches

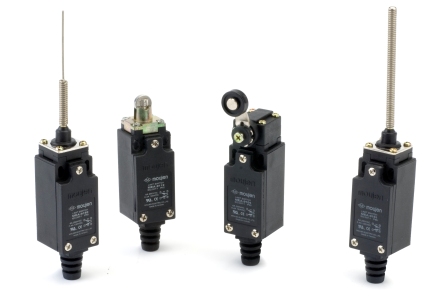

MEA Plastic Limit (cheapest product)
Available with a variety of different control elements. Equipped with a flexiebel M20 cable gland. IP65 sealing 1x NC and 1x NO contact.
Contact Rating: 6A, 125V / 250V / AC
Temperature Range :- 15 ° C to +70 ° C
Also available with cable according to customer specifications.

Standard dimensions according to EN50047

UL and CUL Listed (File No. E130631)
Controls are mounted variably in 4 x 90 degrees
Removable rubber cable input for quick installation
2 different types of enclosures
Even with metals lieverbar Controls

Features :

Total plastic enclosure, light weight switches.
Wide choice of heads and actuators.
Captive cover screws.
Mode of operation is field adjustable.
Dustproof, Oil-Tight, Water-Resistant.
2 circuits : 1 N. O., 1 N.C. contacts design.
Tempe. range : +5 ° F to +160 ° F . (-15 ° C to +70 ° C) .

RATING :

6A	125 OR 250V AC
0.4A	125 V DC

CIRCUITRY :

FIELD ADJUSTABLE :

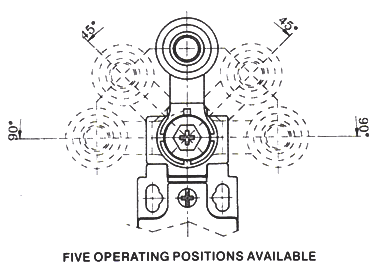

Rotary motion roller lever and rod actuators are adjustable through 360°. They may be set for operation clockwise, counter-clockwise, or in both directions. Operating heads may be positioned in any of four 90° and four 45° positions.

Easy Wiring :

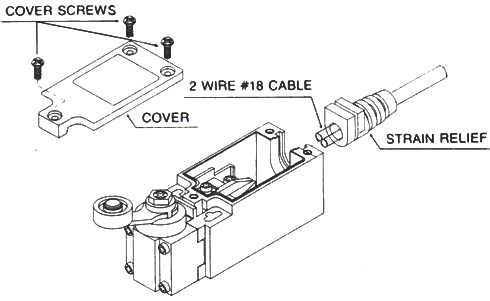

Loosen cover screws and remove cover.
Remove rubber strain relief from switch cover.
Slip strain relief over cable.
Fasten terminal screws tightly after inserting cables or terminals.
After wiring, insert strain relief into the groove of the switch cover.
Fasten 3 cover screws evenly. Do not over tighten.
Recommended Cable-# 18/2 SJT Flexible.

CHARACTERISTICS :

Operating speed	0.5mm to 50m/sec
Operating frequency	Mechanically : 120 operations/min. Electrically : 30 operatioms/min.
Contact resistance	15m Ω max.(initial)
Insulation resistance	100M Ω min (at 500 VDC)
Dielectric strength	1,000VAC. 50/60 Hz for 1 minute between non-continuous terminals 1,500VAC. 50/60 Hz for 1 minute between each terminal and non-current carrying metal part and between each terminal and ground.
Vibration	Malfunction durability : 10 to 55 Hz; 1.5mm double amplitude.
Shock	Mechanical durability : Approx. 1,000m/sec² (approx.100G’s) Malfunction durability : Approx.300m/sec² (approx.30G’s)
Ambient temperature	Operating : -15 ° C to +70 ° C
Humidity	95% RH max
Service life	Mechanically : 10,000,000 operations min Electrically : 500,000 operations min,(2A,110VAC)MAX.
Degree of protection	IEC 529 class IP65

ORDER GUIDE :

Standard type

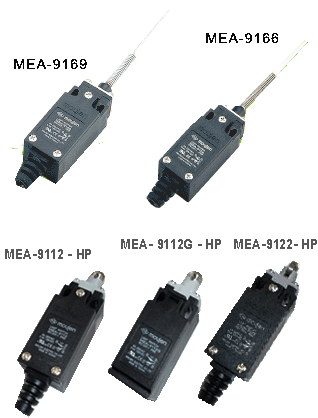

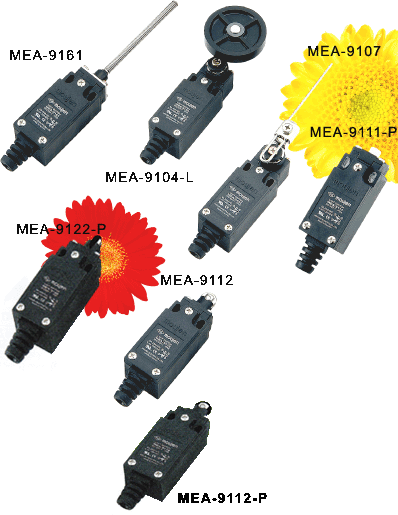

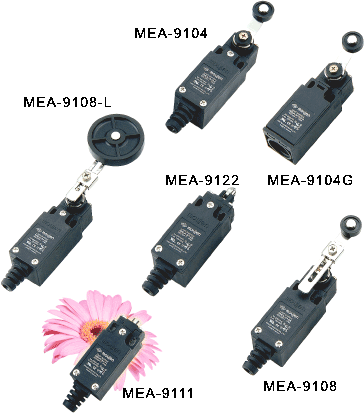

MEA-9104	MEA-9107	MEA-9018	MEA-9111	MEA-9112-P
MEA-9122-P	MEA-9161	MEA-9166	MEA-9169

Flat tail (G) type :

MEA-9104G	MEA-9107G	MEA-9018G	MEA-9111G	MEA-9112G-P
MEA-9122G-P	MEA-9161G	MEA-9166G	MEA-9169G

50mm rubber’s roller(Custom made) : 50mm

MEA-9104-L

MEA-9108-L

Plastic head or roller type (Teflon,custom made)

MEA-9111-P

MEA-9112-PT

MEA-9122-PT

Metal roller type (custom made) : 50mm

MEA-9112

MEA-9122

High rigidity Plastic head (Custom made)

MEA-9112-HP

MEA-9122-HP

MEA-9112G-HP

Pre-Cable type ( Custom made)

MEA-9104A	MEA-9107A	MEA-9018A
MEA-9111A	MEA-9112A	MEA-9122A
MEA-9161A	MEA-9166A	MEA-9169A
